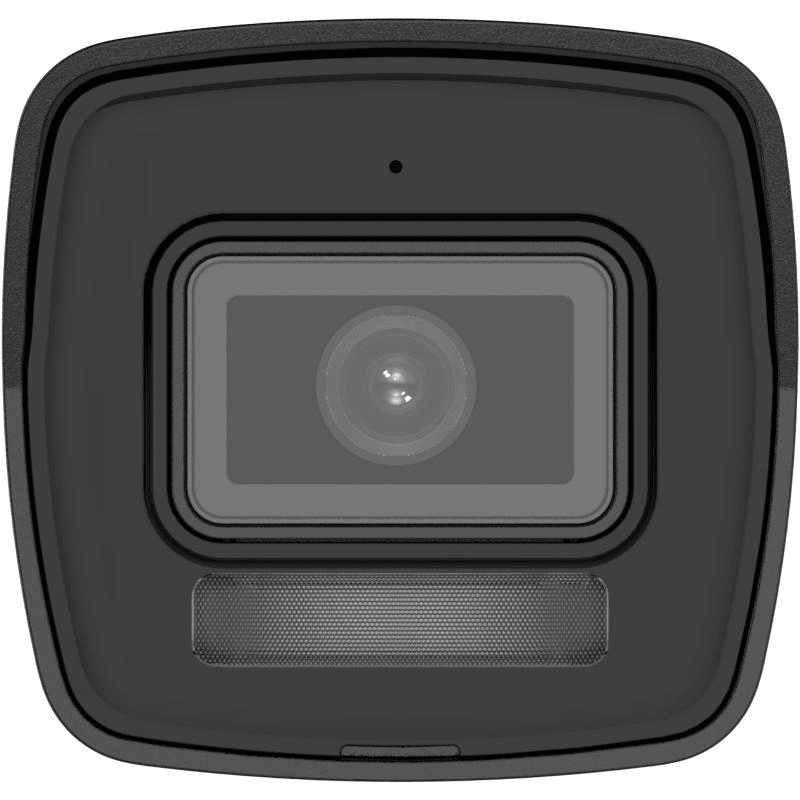

Hikvision DS-2CD1023G2-LIU

Especificación

• • Cámara
  • Sensor De Imagen1/2.9″ Progressive Scan CMOS
  • Max. Resolución1920 × 1080
  • Iluminación MínimaColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • Tiempo De Obturación1/3 s to 1/100,000 s
  • Día Y NocheIR cut filter
  • Ajuste De ÁnguloPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
  • Lente
  • LenteFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°

    4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°

  • Montura Del LenteM12
  • Iris TypeFixed
  • AperturaF1.6
  • DORI
  • DORI

    2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m

    4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

  • Iluminador
  • Tipo De Luz SuplementariaIR,White Light
  • Rango De Luz SuplementariaUp to 30 m
  • Luz De Suplemento InteligenteYes
  • IR Wavelength850 nm
  • Vídeo
  • Main Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

  • Compresión De Video

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG

  • Vídeo Bitrate32 Kbps to 8 Mbps
  • Tipo H.264Baseline Profile,Main Profile,High Profile
  • Tipo H.265Main Profile
  • Bit Rate ControlCBR,VBR
  • Región De Interés (ROI)1 fixed region for main stream
  • Audio
  • Tipo De AudioMono sound
  • Filtro De Ruido AmbientalYes
  • Frecuencia De Muestreo De Audio8 kHz/16 kHz
  • Compresión De AudioG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Velocidad De Bits De Audio64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
  • Red
  • SeguridadPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Vista En Vivo SimultáneaUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
  • ProtocolosTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
  • Usuario/Operador

    Up to 32 users

    3 user levels: administrator, operator, and user

  • ClienteiVMS-4200,Hik-Connect
  • Navegador Web

    Plug-in required live view: IE 10, IE 11,

    Local service: Chrome 57.0+, Firefox 52.0+

  • Imagen
  • Wide Dynamic Range (WDR)Digital WDR
  • SNR≥ 52 dB
  • Interruptor Día/NocheDay,Night,Auto,Schedule
  • Mejora De La ImagenBLC,HLC,3D DNR
  • Configuración De ImagenRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Máscara De Privacidad4 programmable polygon privacy masks
  • Interfaz
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Micrófono IncorporadoYes
  • Reset Key-F: Yes
  • Evento
  • Evento BásicoMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
  • General
  • Alimentación

    12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

    PoE: IEEE 802.3af, Class 3, max: 6.5 W

  • MaterialMetal & Plastic
  • Dimensión170.8 mm × 66 mm × 69.1 mm (6.7″ × 2.6″ × 2.7″)
  • Dimensión Del Paquete216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
  • Approx. 265 g (0.6 lb.)
  • Con Peso Del PaqueteApprox. 495 g (1.1 lb.)
  • Condiciones De Almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Condiciones De Inicio Y Funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • IdiomaEnglish, Ukrainian
  • Función GeneralHeartbeat,anti-banding,mirror,password protection,password reset via email
  • Certificaciones
  • EMC

    FCC: 47 CFR Part 15, Subpart B,

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7

  • Seguridad

    UL: UL 62368-1,

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017,

    BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

  • Ambiente

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ProtecciónIP67: IEC 60529-2013
